COUNTERS /TIMERS / DISPLAYS

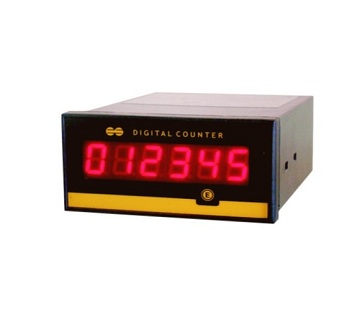

PRODUCTION COUNTER
Supply : 220 Volts AC
Display type : Seven Segments LED
Input : PNP / NPN / Micro / Limit Switch
Input speed selection : User Selectable
Counting : Up counting
Sensor Supply : 12 V DC from unit
Memory Backup : through EPROM
Reset : Front panel Sw / External terminals
Dimensions : 96 x 48 x 110 mm

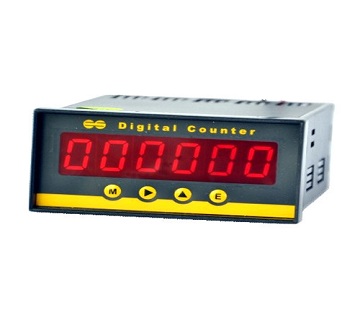

PRESET PRODUCTION COUNTER
Supply : 220 Volts AC
Input from : PNP Sensor / Micro / Limit Sw.
Sensor Supply : 12 V DC from unit
Memory Backup : through EPROM
Reset : Front panel Sw / External Terminal
Setting Thru : Front Switches
Output : Potential free Relay Contacts
Modes : Manual Reset or Auto Reset

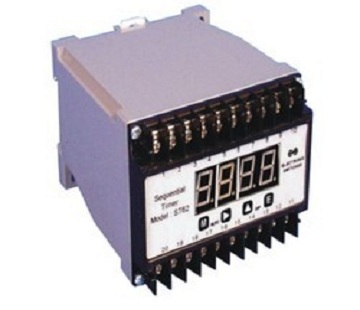

SEQUENTIAL TIMER & PROGRAMMABLE TIMER
Power Supply : 230V AC
No. of Digits : 4 digit
Display : 1/2 inch seven segment display
Output : 6 relay output selctable
Timing : Upto 99 Sec. / Min. Settable. Independently adjustable - T1 (ON delay) and T2 (OFF delay)
Housing : DIN Rail, Plastic
ENERGY SAVING PRODUCTS

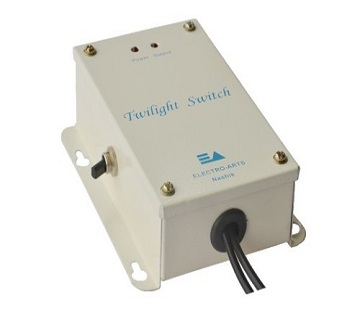

TWILIGHT
Power Supply : 220 V AC, 50 Hzs,
Output : Through relay contacts
Sensitivity Adj : Provided inside the unit.
Sensor : Connection by terminal strip
Manual By Pass : Switch Provided
LED Indications : for Power and Output
Housing : Powder coated metal box.
Dimensions : 155 x 125 x 55 mm
Dimensions : 96 x 48 x 110 mm

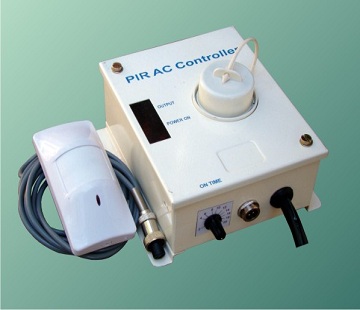

PIR AC CONTROLLER
Power Supply : 220 V AC thru Cable.
Output : 220 V AC @ 15A,
Output from : Metal or Plastic Socket
Timer : Selectable up to 10 -15 minutes.
Sensor type : Wall Mount
Sensing Range : Up to 3 - 3.5 mtrs ( max)
Controller Mounting : Wall Mounting
Dimensions : 200 x 100 x 60 mm (P)
Dimensions : 155 x 150 x 70 mm (M)

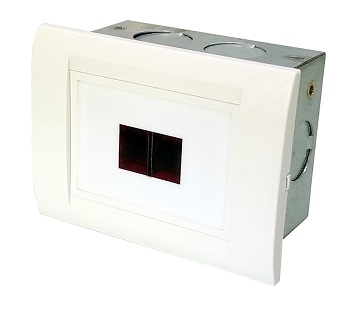

AUTO FLUSH
Power Supply - Built - in Battery Operated. ( 6 V DC )
Batt Details - Alkaline Pencil cell, Type AA, Qty 4 nos, Approx Batt Life - More than 50000 operations
Output - Controls Solenoid Valve (supplied along with unit)
- Model AF 101 : For concealed plumbing.Indications - LEDs
Dimensions - 118 x 90 x 65 mm (With Mounting Box)

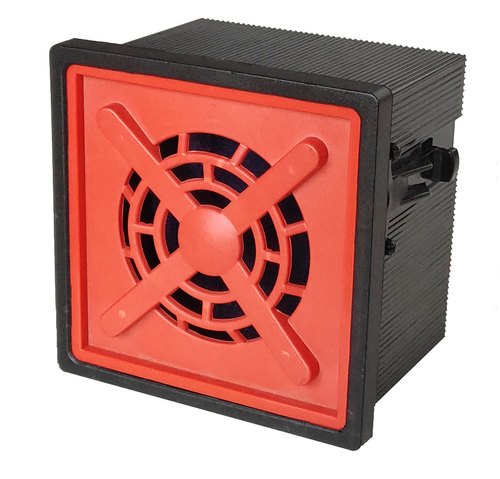

VOICE ANNUNCIATOR
Electronic Switches oers Voice Annunciator with user recordable multiple messages. Unit can store 8 such messages and as per the input signal corresponding message will be announced continuously till the input signal is present. Most important feature is user can record messages in his/her own voice and language using Mobile and Laptop. Use of SD card allows to change the message any time.
