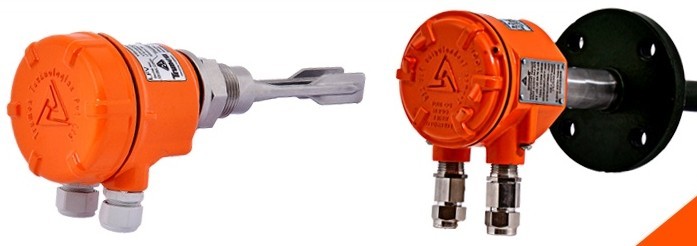

Vibrating Fork Point Level Switch

Process temperature max 250 ºC.
Free flowing powders and granules (size max. 10mm).
Suitable for side as well as top mounting.
Process temperature max 250 ºC.

Admittance Point Level Switch

Suitable for all sticky/non-sticky bulk solids
Process temperature max 600 ºC
Exd version available-suitable for gas group IIC, T6 as per IEC 60079-1-2007 & IEC 600529-2001.

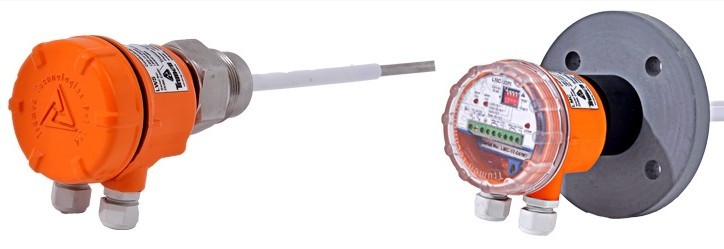

Capcitance Point(s) Level Switch

Single point/multipoint/pump control switching on single probe.
Process temperature max 600 ºC (ceramic insulation).
Process pressure max. 15 bar.
PTFE coated for corrosive and conductive liquids.
Customized process connections like Threaded/Flanged/Hygienic etc.

Vibrating Fork Point Level Switch for Liquids

For free-flow liquids with liquids viscosity up-to 10,000cP.
PTFE/PFA/ECTFE coatings for corrosive liquids.
Various o/p available like DC PNP/NPN/ Two wire DC 8/16, Two wire AC and NAMUR.

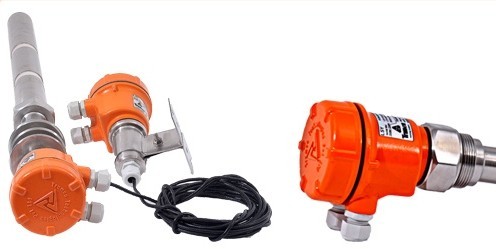

Rotating Paddle Level Switch for Solids

Suitable for free flowing powders and granules.
Various sensing fins option available for different bulk density material.
Spring loaded blades.

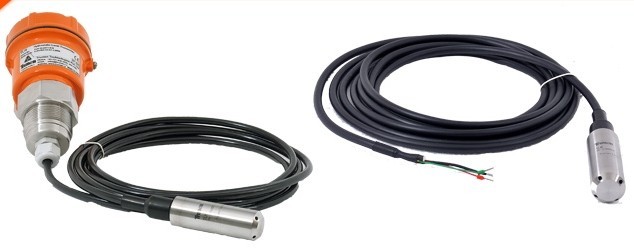

Hydrostatic Continuous Level Transmitter

TLH is a pressure sensor for hydrostatic level measurement.

Drinking water, dam water, bore well, well etc.

Loop powered device (true-two wire).

4-core,ф shielded cable with vent hose which is mechanically strong enough for deep submersible liquid level measurements.

Accuracy +/- 0.25% of FS.

Radar Level Transmitter

Continuous, non-contact level measurement in applicable for liquids and solids in large storage tanks

Various antennas MOC as per process requirement Maximum measuring range up to 70M

Process Temperature -40 to 2000 °C

Process Pressure max -1 to 16 bar

Two wire 4-20mA/HART output

Rate of Flow / Loss of Head Indicator Controller

Universal AC supply 80-260 VAC 50/60Hz.

Isolated 4-20mA output for remote monitoring and control.

3 SDPT relays for local alarm or control.

Open channel level to flow-rate measurement and calculator

Piezoresistive Pressure Transmitter

Measuring ranges from 100mbar to 600bar

Accuracy: ±0.25%FSO or ± 0.5%FSO

Piezoresistive pressure sensor design

Variety of Pressure & Electrical connections

Output 4…20mA, 0…10V, 0…5V and others
